DISCHARGE HEADLIGHT CONTROL UNIT REMOVAL/INSTALLATION

Caution

• Incorrect servicing of the discharge headlight control unit could result in electrical shock. Before servicing the discharge headlight control unit, always refer to the "Discharge headlight service warnings." (See DISCHARGE HEADLIGHT SERVICE WARNINGS)

• When replacing the discharge headlight control unit, configuration procedure must be done before removing the auto leveling control unit. After replacing the discharge headlight control unit, perform the headlight zeroset for auto leveling control unit.

1. Configurate the discharge headlight control unit (when only replacing it). (See AUTO LEVELING CONTROL UNIT CONFIGURATION)

2. Disconnect the negative battery cable.

3. Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION)

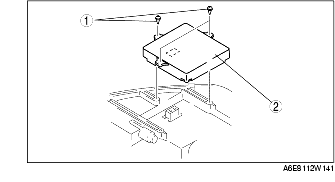

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

6. Perform the headlight zeroset for the discharge headlight control unit (when only replacing it). (See HEADLIGHT ZEROSET)
