FRONT FOG LIGHT AIMING

1. Adjust the tire air pressure to the specification.

2. Position the unloaded vehicle on a flat, level surface.

3. Seat one person in the driver's seat.

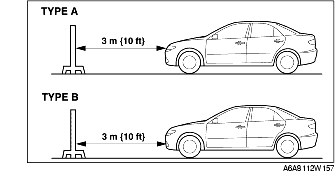

4. Position the vehicle 3 m {10 ft} in front of a white screen.

5. While adjusting one fog light, mask the other.

6. Start the engine to charge the battery.

7. Turn the front fog light on.

8. Partially peel off the mud guard. (Type B)

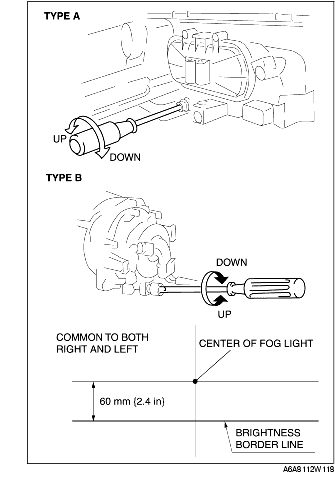

9. Adjust the front fog light by turning the adjusting screws as shown in the figure. Loosen the screws first, then tighten them.

Note

• If the adjusting screws are tightened first, then loosened, they will continue to loosen when the vehicle is in motion and may cause the front fog lights to become misaligned.
