COMBINATION SWITCH DISASSEMBLY/ASSEMBLY
id091800469300
-
Caution
-
• For vehicles with DSC, the clock spring is generally not to be removed from the combination switch as may result in a malfunction of the steering angle sensor. However, remove it only when replacing the clock spring as a single unit by referring to CLOCK SPRING REMOVAL/INSTALLATION.

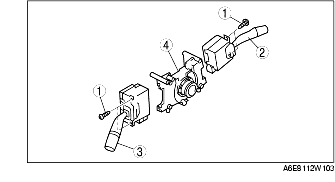

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
|
1
|
Screw
|
|
2
|
Light switch (Wiper and washer switch)
|
|
3
|
Wiper and washer switch (Light switch)
|
|
4
|
Body
|
