LIGHT SWITCH INSPECTION

id091800469800

Light Switch RH Side

1. Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION)

2. Inspect for continuity between the light switch terminals using an ohmmeter.

• If not as specified, replace the light switch.

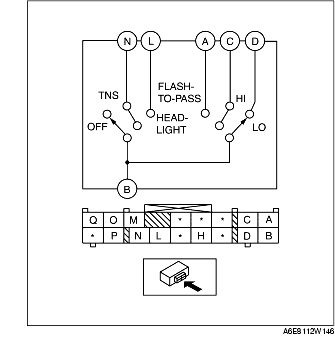

Headlight switch

Turn switch

Light Switch LH Side

1. Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION)

2. Inspect for continuity between the light switch terminals using an ohmmeter.

• If not as specified, replace the light switch.

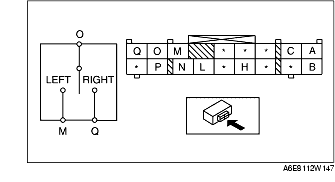

Headlight switch

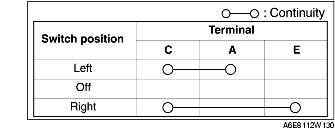

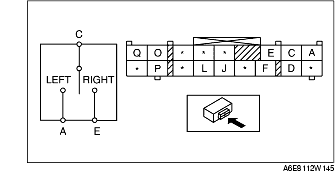

Turn switch
