REAR AUTO LEVELING SENSOR REMOVAL/INSTALLATION


id091800719600

1. Disconnect the negative battery cable.

2. Jack up the vehicle.

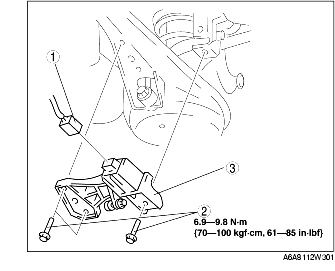

3. Remove in the order indicated in the table.

1
Connector
2
Bolt
3
Rear auto leveling sensor

4. Install in the reverse order of removal.

5. Adjust the headlight zeroset. (See HEADLIGHT ZEROSET.)
