FRONT AND REAR FOG LIGHT SWITCH INSPECTION

id091800805200

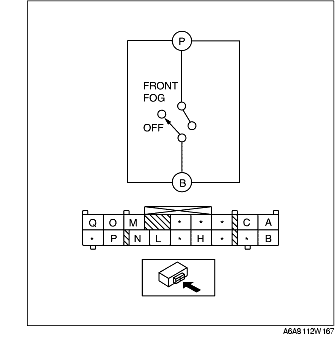

Light Switch RH Side

1. Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)

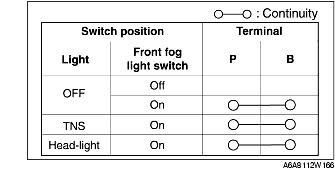

2. Inspect for continuity between the light switch terminals using an ohmmeter.

• If not as specified, replace the light switch.

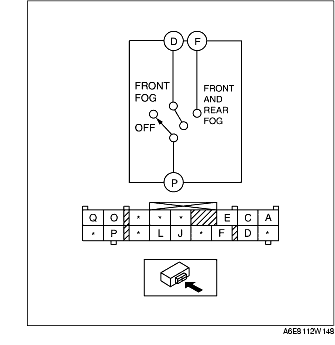

Light Switch LH Side

1. Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)

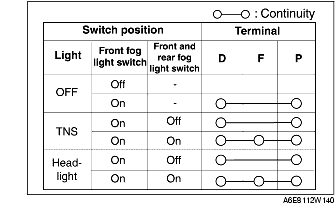

2. Inspect for continuity between the light switch terminals using an ohmmeter.

• If not as specified, replace the light switch.
