CARGO COMPARTMENT LIGHT SWITCH INSPECTION


id091800810900

1. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION)

2. Disconnect the cargo compartment light switch connector.

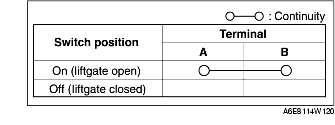

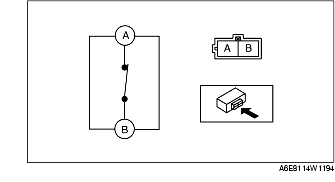

3. Inspect for continuity between the cargo compartment light switch terminals using an ohmmeter.

• If not as specified, replace the liftgate lock.
