FLASHER UNIT REMOVAL/INSTALLATION


id091800851600

1. Disconnect the negative battery cable.

2. Remove the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION)

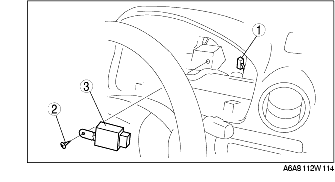

3. Remove in the order indicated in the table.

1
Connector
2
Screw
3
Flasher unit

4. Install in the reverse order of removal.
