FLASHER UNIT INSPECTION

id091800851700

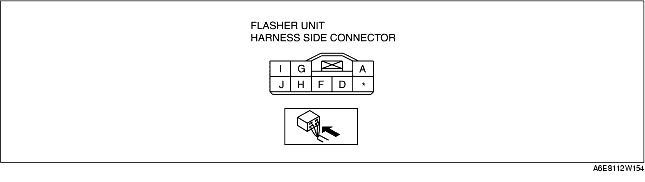

1. Connect the connector to the flasher unit.

2. Connect the negative battery cable.

3. Measure the voltage at the flasher unit using a voltmeter.

• When inspecting terminal F for continuity, disconnect the flasher unit connector.

4. If the value are not as specified in the Terminal Voltage List (Reference), inspect the parts under "Action" and related wiring harnesses.

5. If the system does not work properly even though the parts or related wiring harnesses do not have any malfunction, replace the flasher unit.

Terminal Voltage List (Reference)

Terminal

Signal

Connected to

Test condition

Voltage (V)/

Continuity

Action

A
Power supply
HAZARD 10 A fuse
Under any condition
B+
• Inspect HAZARD 10 A fuse
• Inspect related harness
D
Turn signal flasher (LH)
Turn signal light (LH)
Turn signal light (LH) flashes
Alternates
between
below 1.0 and B+
• Inspect turn signal light (LH)
• Inspect related harness
Hazard warning switch at on position
Other
Below 1.0
F
Flasher unit ground
GND
Under any condition: inspect for continuity to ground
Yes
• Inspect GND
G
Turn signal flasher (RH)
Turn signal light (RH)
Turn signal light (RH) flashes
Alternates
between
below 1.0 and B+
• Inspect turn signal light (RH)
• Inspect related harness
Hazard warning switch at on position
Other
Below 1.0
H
Hazard warning on
Hazard warning switch
Hazard warning switch at on position
Below 1.0
• Inspect hazard warning switch
• Inspect related harness
Hazard warning switch at off position
B+
I
Turn switch on/off (RH)
Combination switch
Ignition switch is at ON and turn switch (RH) on
B+
• Inspect combination switch
• Inspect related harness
Other
Below 1.0
J
Turn switch on/off (LH)
Combination switch
Ignition switch is at ON and turn switch (LH) on
B+
• Inspect combination switch
• Inspect related harness
Other
Below 1.0
