WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION


id091900474800

1. Disconnect the negative battery cable.

2. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

3. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

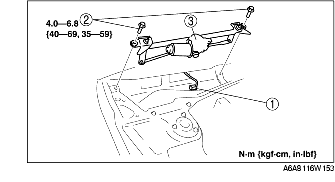

4. Remove in the order indicated in the table.

1
Connector
2
Bolt
3
Windshield wiper motor

5. Install in the reverse order of removal.

6. Adjust the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT.)
