WASHER TANK REMOVAL/INSTALLATION


id091900476100

1. Disconnect the negative battery cable.

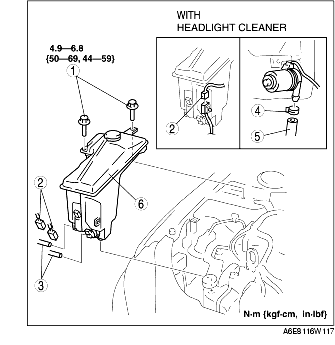

2. Remove in the order indicated in the table.

1
Bolt
2
Connector
3
Washer hose
4
Clip
5
Headlight cleaner hose
6
Washer tank

3. Install in the reverse order of removal.
