WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION


id091900476500

1. Remove the bonnet insulator.

2. Partially peel off the right side mud guard.

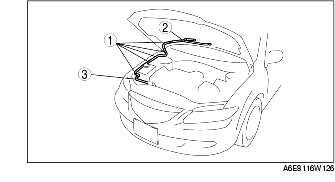

3. Remove in the order indicated in the table.

1
Clip
2
Joint pipe
3
Windshield washer hose

4. Install in the reverse order of removal.
