WIPER AND WASHER SWITCH REMOVAL/INSTALLATION


id091900800200

1. Disconnect the negative battery cable.

2. Remove the column cover.

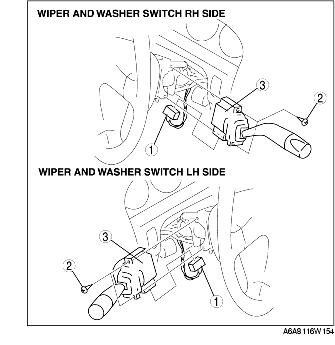

3. Remove in the order indicated in the table.

1
Connector
2
Screw
3
Wiper and washer switch

4. Install in the reverse order of removal.
