HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION


id091900803100

1. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION)

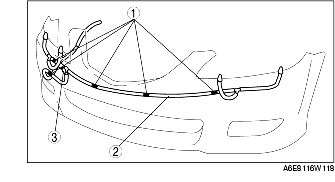

2. Remove in the order indicated in the table.

1
Clip
2
Headlight cleaner hose
3
Check valve

3. Install in the reverse order of removal.
