INTERMITTENT REAR WIPER RELAY REMOVAL/INSTALLATION

id091900806500

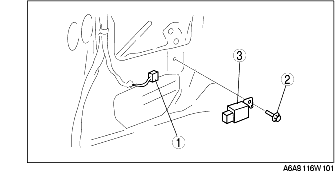

5HB

1. Disconnect the negative battery cable.

2. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION)

3. Remove in the order indicated in the table.

1
Connector
2
Bolt
3
Intermittent rear wiper relay

4. Install in the reverse order of removal.

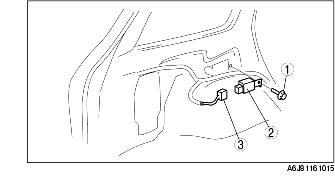

WGN

1. Disconnect the negative battery cable.

2. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION)

3. Remove in the order indicated in the table.

1
Bolt
2
Intermittent rear wiper relay
3
Connector

4. Install in the reverse order of removal.
