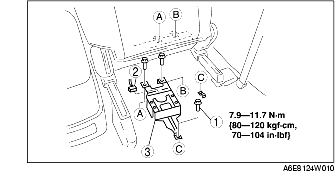

AUDIO AMPLIFIER REMOVAL/INSTALLATION


id092000801100

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.

1
Bolt
2
Connector
3
Audio amplifier

3. Install in the reverse order of removal.
