CENTER ROOF ANTENNA INSPECTION


id092000801700

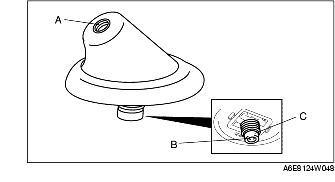

1. Verify that there is no continuity between the center roof antenna terminals A and C using an ohmmeter.

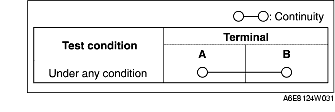

2. Inspect for continuity between the center roof antenna terminals using an ohmmeter.

• If not as specified, replace the center roof antenna.
