CENTER PANEL MODULE DISASSEMBLY/ASSEMBLY
id092000804500
-
Caution
-
• Before disassembling the center panel module, spread a cloth on the floor to put the disassembled parts on. This protects the surface of the panel from scratches or dirt.
1. Remove the center panel module. (See CENTER PANEL MODULE REMOVAL/INSTALLATION.)

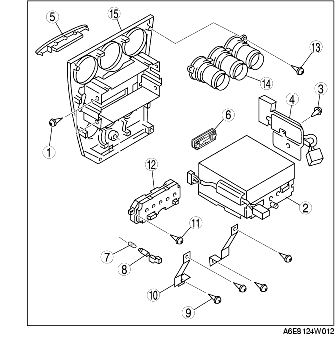

2. Remove in the order indicated in the table.
|
1
|
Screw
|
|
2
|
Audio unit
|
|
3
|
Screw
|
|
4
|
Circuit board (manual A/C only)
|
|
5
|
Cover (upper module)
|
|
6
|
Cover (lower module)
|
|
7
|
Passenger-side air bag cut indicator light bulb
|
|
8
|
Socket
|
|
9
|
Screw
|
|
10
|
Bracket
|
|
11
|
Screw
|
|
12
|
Climate control unit (full auto A/C only)
|
|
13
|
Screw
|
|
14
|
Ventilator grille
|
|
15
|
Center panel
|
3. Install in the reverse order of removal.
