WOOFER REMOVAL/INSTALLATION

id092000805200

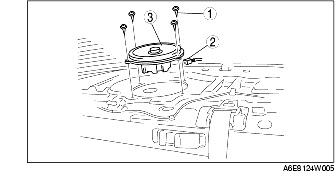

4SD

1. Disconnect the negative battery cable.

2. Remove the rear package trim.

3. Remove in the order indicated in the table.


1	Screw
2	Connector
3	Woofer

4. Install in the reverse order of removal.

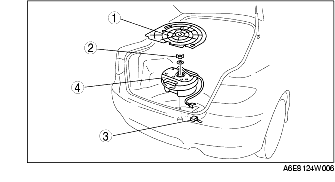

5HB

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.


1	Temporary spare tire cover
2	Wing bolt
3	Connector
4	Woofer

3. Install in the reverse order of removal.
