NOISE FILTER REMOVAL/INSTALLATION

id092000806400

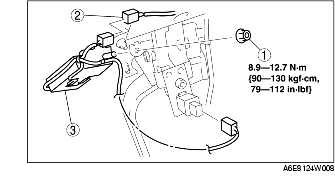

Brake Light Noise Filter

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.

1
Nut
2
Connector
3
Noise filter

3. Install in the reverse order of removal.

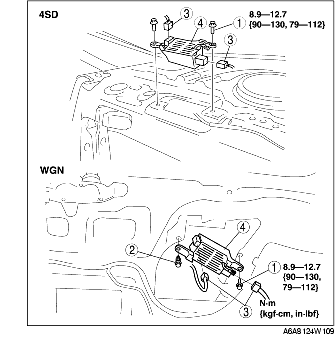

Rear Window Defroster Noise Filter

1. Disconnect the negative battery cable.

2. Remove the rear package trim. (4SD)

3. Remove the liftgate lower trim. (WGN)

4. Remove in the order indicated in the table.

1
Bolt
2
Screw
3
Connector
4
Noise filter

5. Install in the reverse order of removal.
