TWEETER INSPECTION

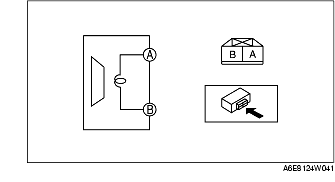

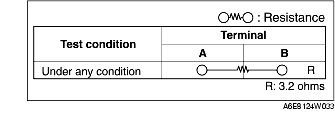

1. Inspect for resistance between the tweeter terminals using an ohmmeter.

• If not as specified, replace the tweeter.

2. To verify that the tweeter outputs sound, apply voltage to the tweeter and release using a 1.5-V battery.

• If sound is not output, replace the tweeter.
