IGNITION SWITCH REMOVAL/INSTALLATION


id092100800200

1. Disconnect the negative battery cable.

2. Remove the column cover.

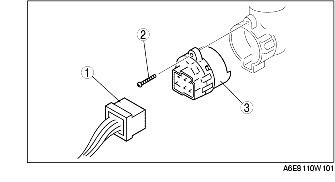

3. Remove in the order indicated in the table.

1
Connector
2
Screw
3
Ignition switch

4. Install in the reverse order of removal.
