RELAY INSPECTION

id092100800300

Relay Type

Terminal type

Part name

Four-terminal
Type A
• Main relay
• Fuel pump relay
• Starter relay
• TNS relay
• Front fog light relay
• Rear fog light relay
• Horn relay
• Headlight cleaner relay
• Rear window defroster relay
• Woofer relay
• A/C relay
• Blower relay
• Cooling fan relay No.1 (except L3 engine)
• Cooling fan relay No.2
• Cooling fan relay No.3
• Cooling fan relay No.4
Type B
• Headlight relay
Five-terminal
Type C
• Cooling fan relay No.1 (L3 engine only)

Four-terminal

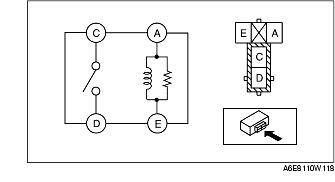

Type A

1. Remove the relay.

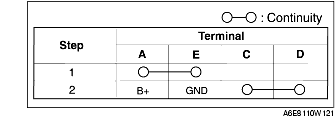

2. Inspect for continuity between the relay terminals using an ohmmeter.

• If not as specified, replace the relay.

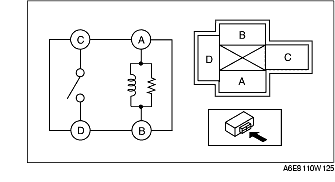

Type B

1. Remove the relay.

2. Inspect for continuity between the relay terminals using an ohmmeter.

• If not as specified, replace the relay.

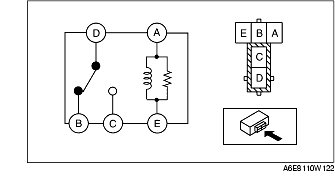

Type C

1. Remove the relay.

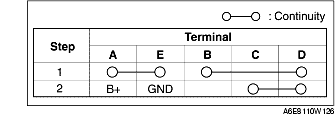

2. Inspect for continuity between the relay terminals using an ohmmeter.

• If not as specified, replace the relay.
