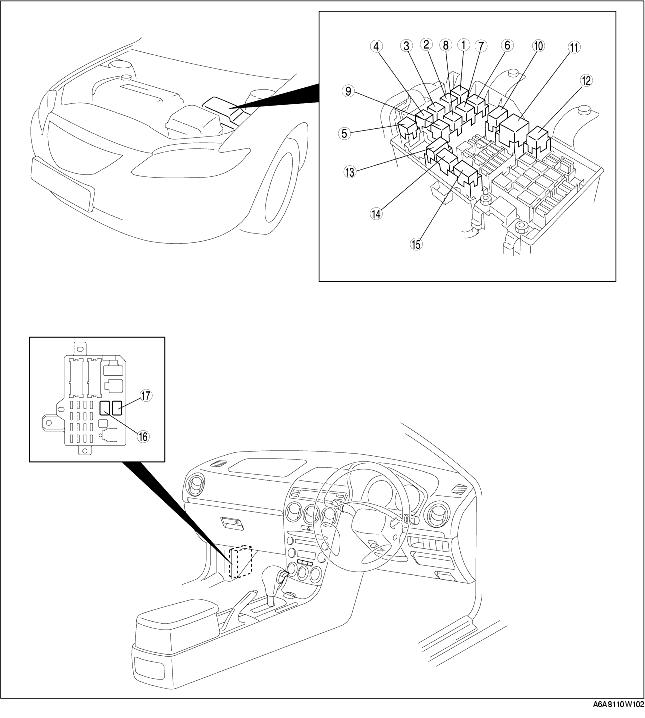

RELAY LOCATION
id092100800600
1
Cooling fan relay No.2
2
Horn relay
3
Cooling fan relay No.3
4
Starter relay
5
Cooling fan relay No.4
6
Woofer relay
7
Rear window defroster relay
8
Rear fog light relay
9
A/C relay
10
Main relay
11
Headlight relay
12
TNS relay
13
Cooling fan relay No.1
14
Headlight cleaner relay
15
Front fog light relay
16
Fuel pump relay
17
Blower relay
