KEY REMINDER SWITCH INSPECTION


id092100801100

1. Disconnect the negative battery cable.

2. Remove the column cover.

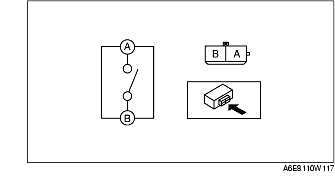

3. Connect the key reminder switch connector.

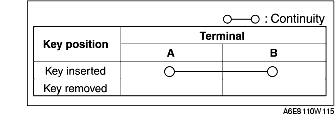

4. Inspect for continuity between the key reminder switch terminals using an ohmmeter.

• If not as specified, replace the key reminder switch.
