PID/DATA MONITOR AND RECORD PROCEDURE
id092200800600

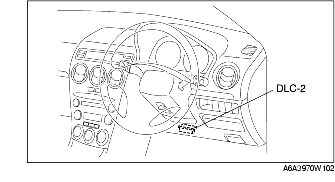

1. Connect SST (WDS or equivalent) to the vehicle DLC-2 16-pin connector.
2. Access and monitor PIDs using SST (WDS or equivalent).
Monitor Item Table
• The PID/DATA monitoring items for the instrument cluster is as shown in the table below.
-: Not applicable
|
PID item
|
Definition
|
Unit/Condition
|
Terminal
|
|
CCNT_HE
|
Continuous codes
|
Number of continuous codes
|
-
|
|
ECT_GAUGE
|
Temperature gauge
|
°C
|
°F
|
2W, 2X
|
|
FUEL
|
Fuel flow
|
l/min
|
2D, 2M
|
|
ODOMETR
|
Total distance
|
km
|
mile
|
2W, 2X
|
|
SPEEDSG
|
Speedometer
|
km/h
|
mile/h
|
|
RPM
|
Tachometer
|
rpm
|
