HORN REMOVAL/INSTALLATION


id092200800900

1. Disconnect the negative battery cable.

2. Bend the mud guard.

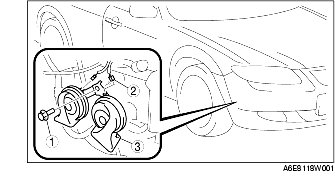

3. Remove in the order indicated in the table.

1
Bolt
2
Connector
3
Horn

4. Install in the reverse order of removal.
