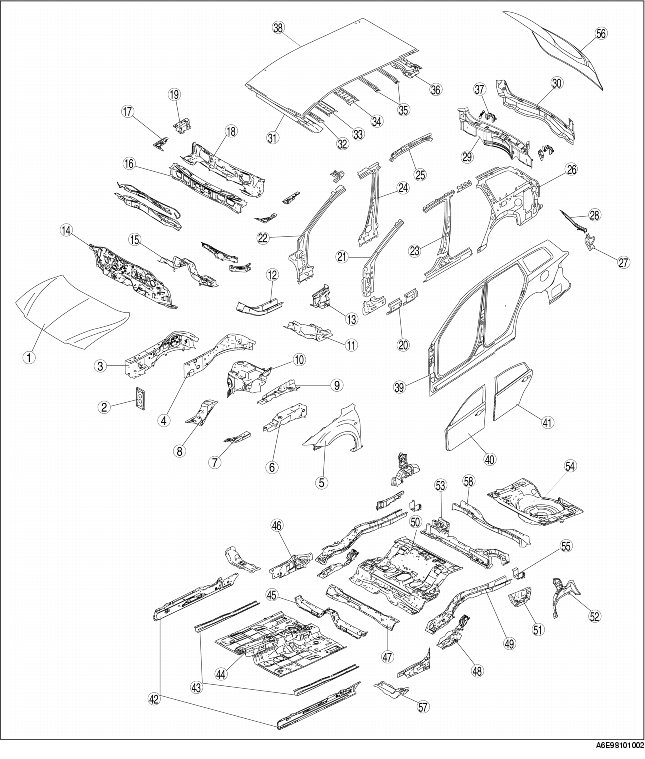

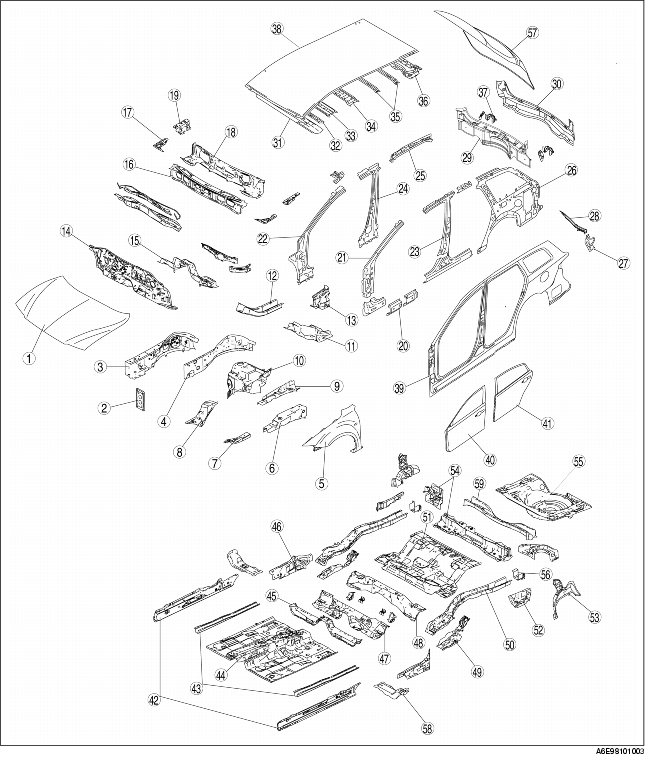

No.
|
Part Name
|
High- tension steel
|
Rust proof steel
|
Thickness
|
|
(mm)
|
{in}
|
|
1
|
Bonnet
|
x
|
x
|
0.70
|
{0.028}
|
|
2
|
Front bumper bracket
|
-
|
-
|
2.90
|
{0.114}
|
|
3
|
Front side frame (inner)
|
Fr
|
x
|
x
|
1.60
|
{0.063}
|
|
Rr
|
x
|
x
|
2.60
|
{0.102}
|
|
4
|
Front side frame (outer)
|
Fr
|
x
|
x
|
1.40
|
{0.055}
|
|
Rr
|
x
|
x
|
2.00
|
{0.079}
|
|
5
|
Front fender panel
|
x
|
x
|
0.75
|
{0.030}
|
|
6
|
Apron reinforcement (upper)
|
-
|
x
|
1.00
|
{0.039}
|
|
7
|
Shroud upper reinforcement
|
-
|
x
|
2.00
|
{0.079}
|
|
8
|
Wheel apron panel (front)
|
-
|
x
|
0.65
|
{0.026}
|
|
9
|
Apron reinforcement (lower)
|
-
|
x
|
1.00
|
{0.039}
|
|
10
|
Suspension housing
|
Upper
|
x
|
x
|
3.20
|
{0.126}
|
|
Lower
|
-
|
x
|
1.20
|
{0.047}
|
|
11
|
Torque box
|
-
|
x
|
1.40
|
{0.055}
|
|
12
|
Front frame (rear)
|
x
|
x
|
2.90
|
{0.114}
|
|
13
|
Cowl side reinforcement
|
-
|
x
|
1.20
|
{0.047}
|
|
14
|
Dash lower panel
|
-
|
-
|
0.85
|
{0.033}
|
|
15
|
Member dash (lower)
|
-
|
x
|
1.60
|
{0.063}
|
|
16
|
Cowl panel
|
-
|
x
|
0.70
|
{0.028}
|
|
17
|
Cowl upper plate
|
-
|
x
|
1.60
|
{0.063}
|
|
18
|
Dash upper panel
|
-
|
x
|
0.90
|
{0.035}
|
|
19
|
Cowl upper plate
|
x
|
x
|
1.40
|
{0.055}
|
|
20
|
Side sill reinforcement
|
x
|
x
|
0.90
|
{0.035}
|
|
21
|
Front pillar reinforcement
|
x
|
-
|
1.80
|
{0.071}
|
|
22
|
Front pillar (inner)
|
Upper
|
x
|
-
|
1.60
|
{0.063}
|
|
Lower
|
x
|
-
|
1.40
|
{0.055}
|
|
23
|
Center pillar reinforcement
|
Upper
|
Fr
|
x
|
-
|
1.80
|
{0.071}
|
|
Rr
|
x
|
-
|
1.60
|
{0.063}
|
|
Center
|
x
|
-
|
2.00
|
{0.079}
|
|
Lower
|
x
|
-
|
1.80
|
{0.071}
|
|
24
|
Center pillar (inner)
|
Upper
|
x
|
-
|
1.60
|
{0.063}
|
|
Center
|
x
|
-
|
1.20
|
{0.047}
|
|
Lower
|
x
|
-
|
1.00
|
{0.039}
|
|
25
|
Roof rail (inner)
|
x
|
-
|
1.20
|
{0.047}
|
|
26
|
Rear pillar (inner)
|
-
|
x
|
0.65
|
{0.026}
|
|
27
|
Corner plate
|
-
|
x
|
0.70
|
{0.028}
|
|
28
|
Rear pillar (outer)
|
-
|
x
|
0.70
|
{0.028}
|
|
29
|
Crossmember No.5
|
-
|
x
|
1.20
|
{0.047}
|
|
30
|
Rear end panel
|
-
|
x
|
0.85
|
{0.033}
|
|
31
|
Front header
|
-
|
-
|
1.20
|
{0.047}
|
|
32
|
Roof reinforcement
|
-
|
-
|
0.55
|
{0.022}
|
|
33
|
Roof reinforcement
|
-
|
x
|
1.60
|
{0.063}
|
|
34
|
Roof reinforcement
|
-
|
-
|
0.55
|
{0.022}
|
|
35
|
Roof reinforcement
|
-
|
-
|
0.55
|
{0.022}
|
|
36
|
Rear header
|
Upper
|
-
|
-
|
0.50
|
{0.020}
|
|
Center
|
-
|
-
|
0.70
|
{0.028}
|
|
Side
|
-
|
-
|
1.40
|
{0.055}
|
|
37
|
Rear bumper bracket
|
-
|
x
|
1.60
|
{0.063}
|
|
38
|
Roof panel
|
-
|
x
|
0.75
|
{0.030}
|
|
39
|
Side frame (outer)
|
-
|
x
|
0.70
|
{0.028}
|
|
40
|
Front door
|
-
|
x
|
0.70
|
{0.028}
|
|
41
|
Rear door
|
-
|
x
|
0.70
|
{0.028}
|
|
42
|
Side sill (inner)
|
x
|
x
|
1.60
|
{0.063}
|
|
43
|
Front B frame
|
Fr
|
x
|
x
|
2.30
|
{0.091}
|
|
Rr
|
-
|
x
|
1.60
|
{0.063}
|
|
44
|
Front floor pan
|
-
|
x
|
0.65
|
{0.026}
|
|
45
|
Crossmember No.2
|
-
|
-
|
1.20
|
{0.047}
|
|
46
|
Side sill (inner, rear)
|
x
|
x
|
1.60
|
{0.063}
|
|
47
|
Crossmember No.3
|
x
|
-
|
1.40
|
{0.055}
|
|
48
|
Link bracket
|
x
|
x
|
2.30
|
{0.091}
|
|
49
|
Rear side frame
|
Fr
|
x
|
x
|
1.80
|
{0.071}
|
|
Rr
|
x
|
x
|
1.40
|
{0.055}
|
|
50
|
Center floor pan
|
-
|
x
|
0.60
|
{0.024}
|
|
51
|
Floor side panel
|
-
|
x
|
0.60
|
{0.024}
|
|
52
|
Wheel house (inner)
|
-
|
x
|
0.75
|
{0.030}
|
|
53
|
Crossmember No.4
|
-
|
x
|
1.20
|
{0.047}
|
|
54
|
Rear floor pan
|
-
|
x
|
0.65
|
{0.026}
|
|
55
|
Rear bumper bracket
|
LH
|
x
|
x
|
2.00
|
{0.079}
|
|
RH
|
x
|
x
|
1.40
|
{0.055}
|
|
56
|
Liftgate panel
|
-
|
x
|
0.70
|
{0.028}
|
|
57
|
Seat bracket
|
-
|
-
|
1.60
|
{0.063}
|
|
58
|
Crossmember No.4
|
-
|
x
|
1.00
|
{0.039}
|
