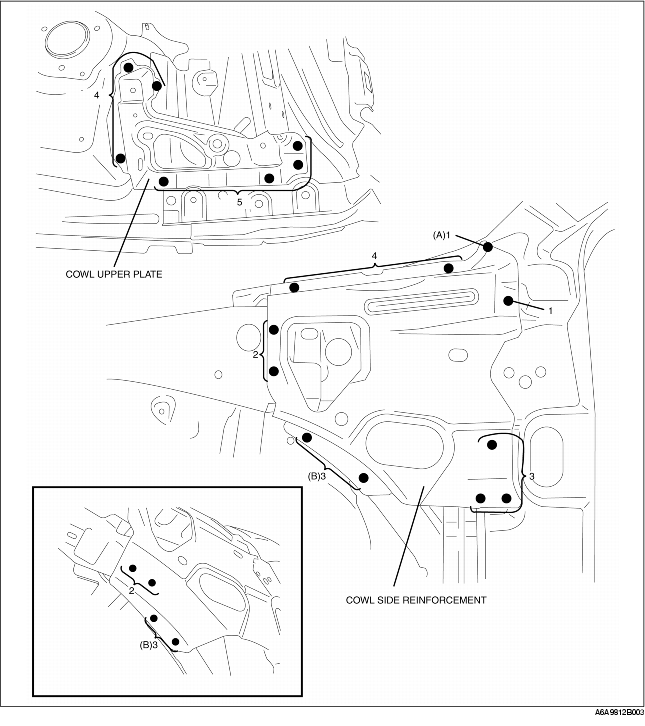

COWL SIDE REINFORCEMENT AND COWL UPPER PLATE REMOVAL

1. Remove the cowl side reinforcement.

Note

• The weld locations (B) in the figure indicate the same locations.

Caution

• Be careful not to damage the windshield when drilling the location indicated by (A).

2. Remove the cowl upper plate.
