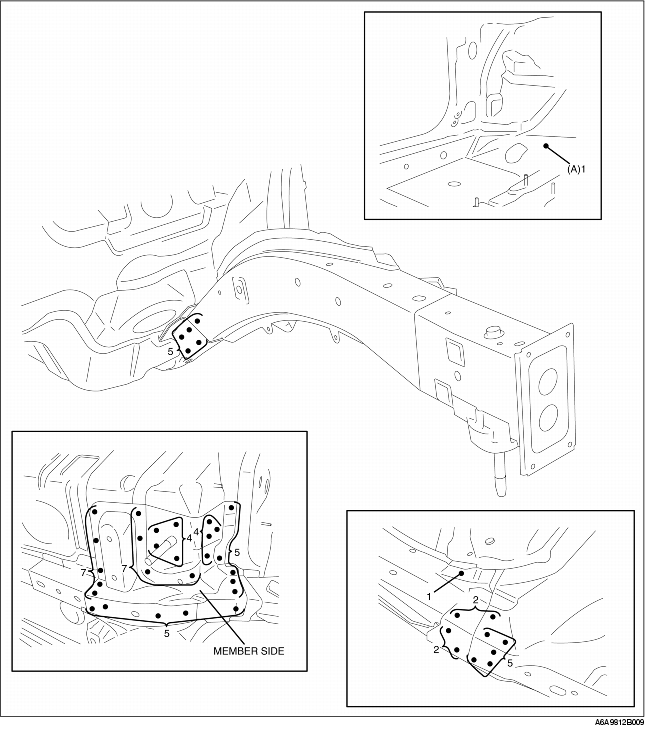

FRONT SIDE FRAME REMOVAL


id098008605900

1. Remove the member side.

2. Drill the 1 weld locations indicated by (A), from the room side.

3. Drill the remaining weld locations and remove the front side frame by pulling it.
