REAR FENDER RAIN RAIL AND CORNER PLATE REMOVAL (5HB)

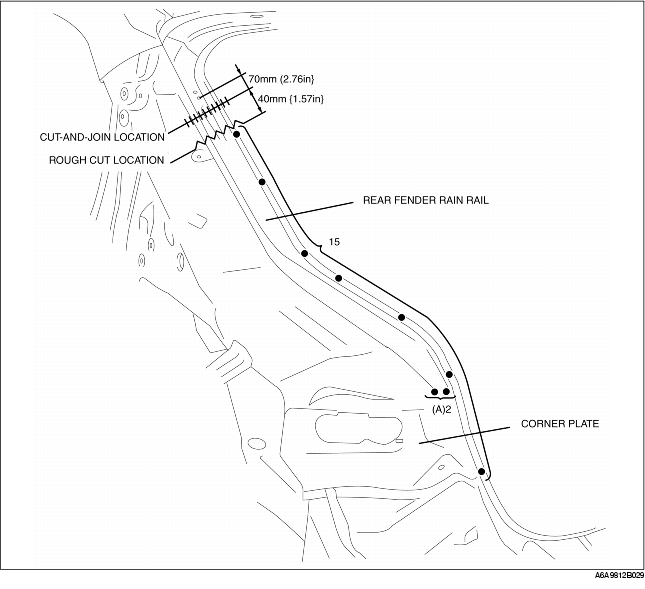

1. Remove the rear fender rain rail and corner plate.

Note

• When removing the rear fender rain rail and the corner plate separately, drill 2 locations indicated by (A).
