SIDE SILL PANEL INSTALLATION


id098008615200

1. When joining and cutting the new and existing parts, trial fit the new part in position, then measure and adjust the body as necessary to conform with standard dimensions.

2. Drill holes for plug welds before installing new parts.

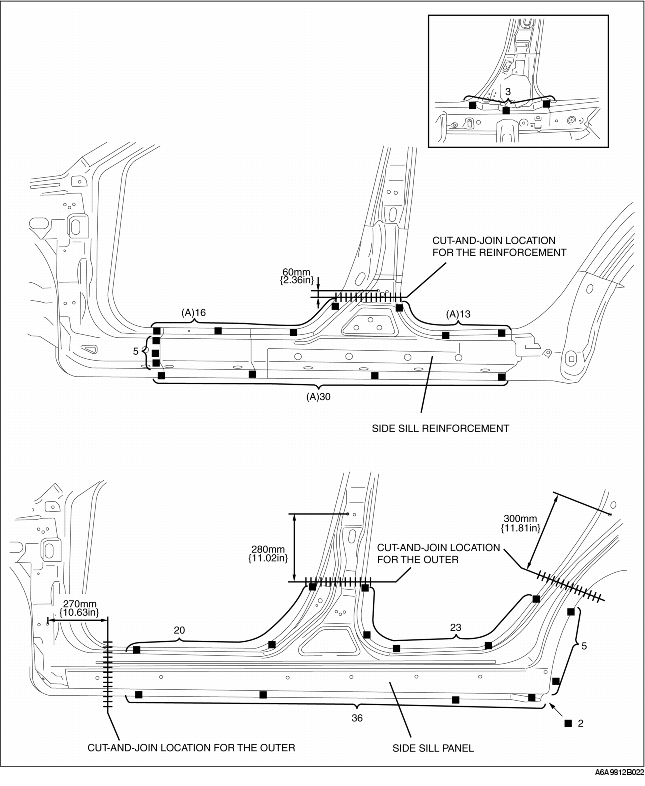

3. Plug welding of 59 weld locations indicated by (A), during installation of the side sill panel.

4. After temporarily installing new parts, make sure the related parts fit properly.
