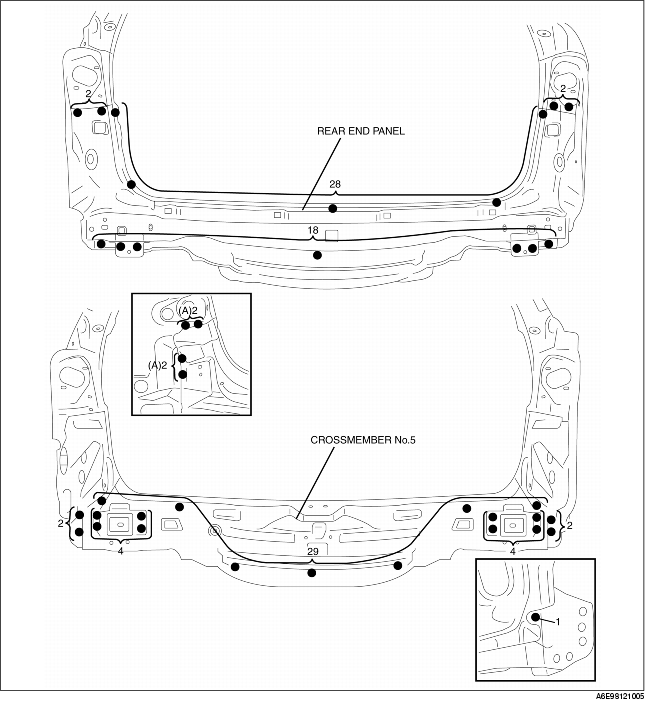

REAR END PANEL AND CROSSMEMBER No.5 REMOVAL (WAGON)


id0980086157a1

1. Remove the rear end panel.

2. Drill the 4 weld locations indicated by (A), from the room side.

3. Remove the crossmember No.5.
