CENTER PILLAR REMOVAL


id098008743900

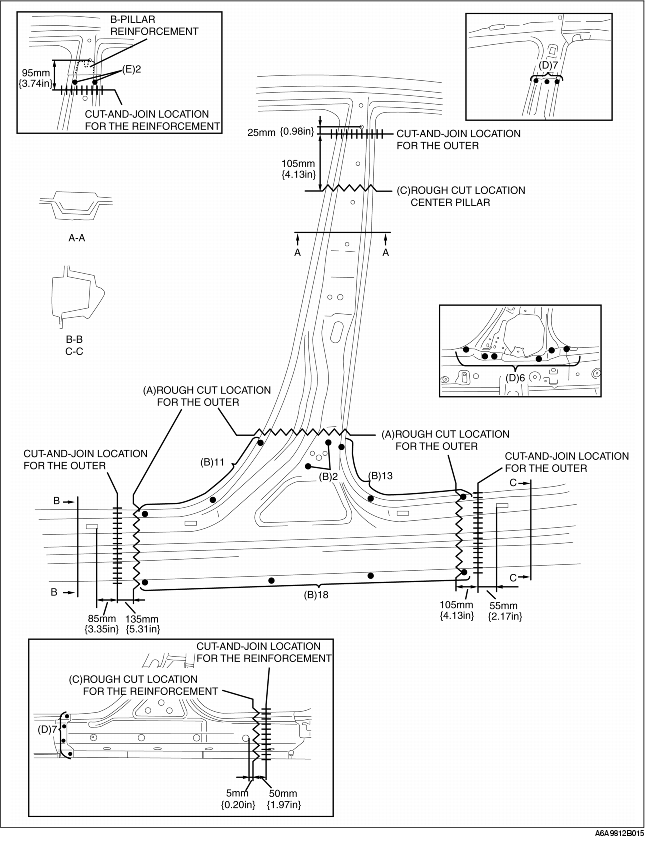

1. Rough cut area (A), drill the 44 weld locations indicated by (B), then remove the lower part of the center pillar (outer).

2. Rough cut area (C), drill the 20 weld locations indicated by (D), then remove the center pillar.

3. Drill the 2 weld locations indicated by (E) and remove the B-pillar reinforcement.
