FRONT PILLAR REMOVAL

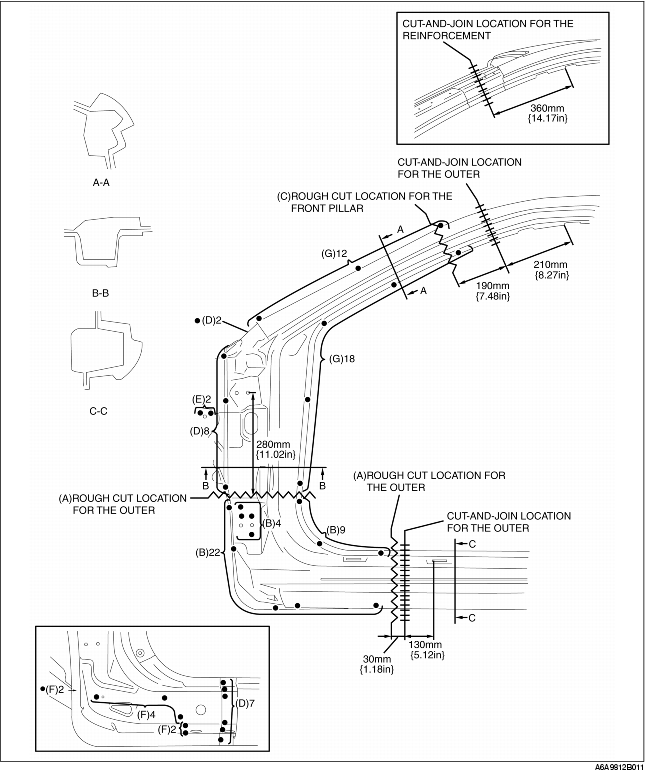

1. Rough cut area (A), drill the 35 weld locations indicated by (B), then remove the lower part of the front pillar (outer).

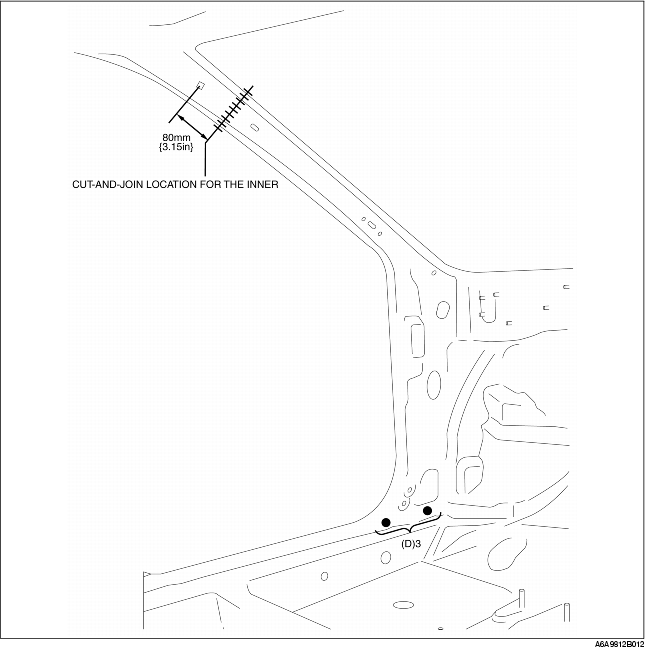

2. Rough cut area (C), drill the 20 weld locations indicated by (D), and 2 weld locations indicated by (E), then remove the front pillar.

Note

• If removing the front pillar reinforcement and the front pillar (inner) as separate parts, drill 8 locations indicated by (F) and drill 30 locations indicated by (G).
