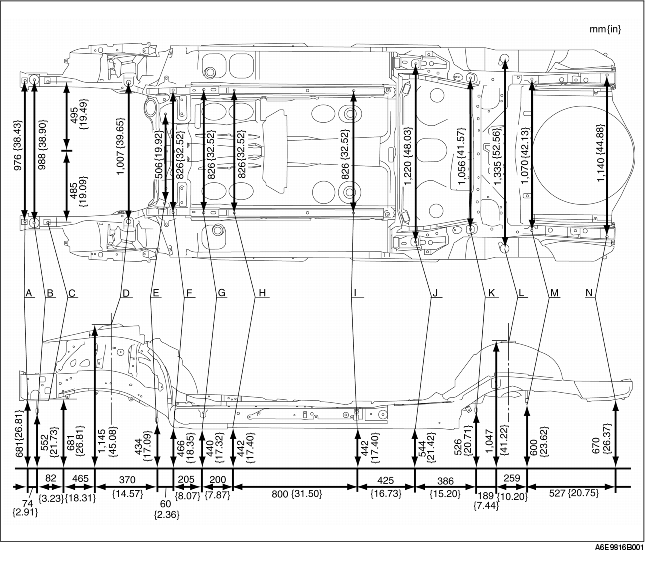

Point symbol
|
Designation
|
Hole diameter or bolt or nut size mm {in}
|
|
A
|
Front side frame standard hole
|
ø16 {0.63}
|
|
B
|
Front crossmember mounting bolt
|
M14 {0.55}
|
|
C
|
Front side frame standard hole
|
ø16 {0.63}
|
|
D
|
Front suspension mounting block standard hole
|
ø59 {2.32}
|
|
E
|
Front crossmember mounting bolt
|
M14 {0.55}
|
|
F
|
Front frame rear standard hole
|
ø18 {0.71}
|
|
G
|
Front frame rear standard hole
|
ø16 {0.63}
|
|
H
|
Front B frame standard hole
|
ø12 {0.47}
|
|
I
|
Front B frame standard hole
|
14 × 20
|
|
{0.55 × 0.79}
|
|
J
|
Rear side frame standard hole
|
ø20 {0.79}
|
|
K
|
Rear crossmember mounting bolt
|
M14 {0.55}
|
|
L
|
Rear suspension housing bolt
|
M6 {0.24}
|
|
M
|
Rear crossmember mounting bolt
|
M14 {0.55}
|
|
N
|
Rear side frame standard hole
|
16 × 20
|
|
{0.63 × 0.79}
|
