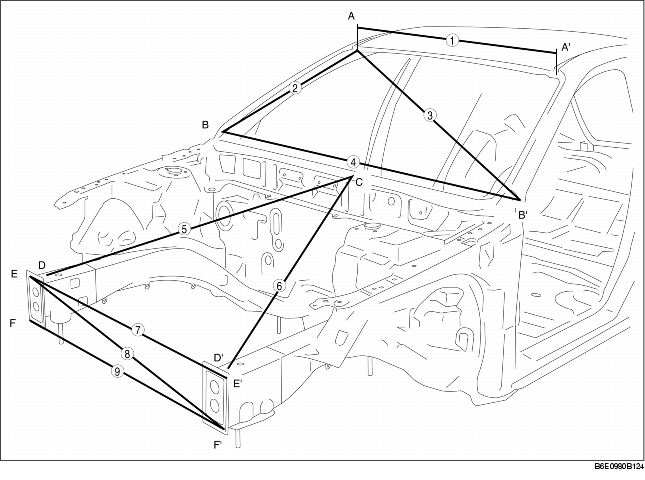

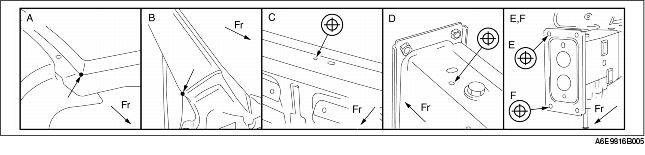

Measured location
|
Dimensions mm {in}
|
|---|---|
|
1
|
1,023 {40.28}
|
|
2
|
749 {29.49}
|
|
3
|
1,458 {57.40}
|
|
4
|
1,529 {60.20}
|
|
5
|
1,070 {42.13}
|
|
6
|
1,085 {42.72}
|
|
7
|
1,070 {42.13}
|
|
8
|
1,084 {42.68}
|
|
9
|
1,070 {42.13}
|
