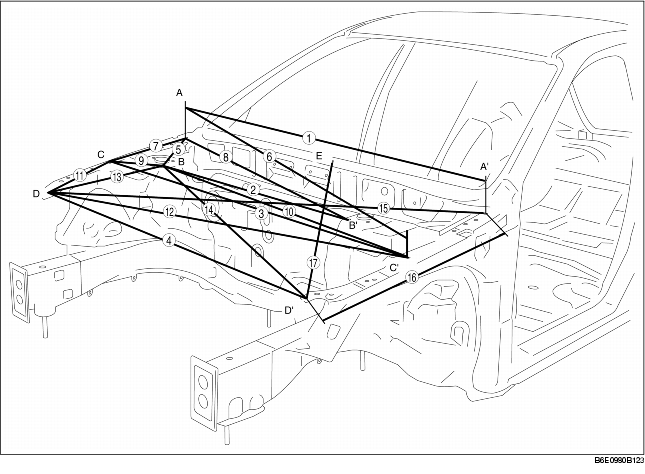

FRONT BODY STRAIGHT-LINE DIMENSIONS (2)

id098010740700

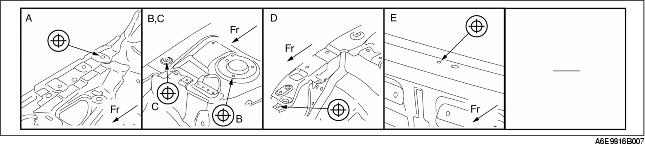

Measured location

Dimensions mm {in}

1
1,480 {58.27}
2
959 {37.76}
3
1,481 {58.31}
4
1,340 {52.76}
5
452 {17.80}
6
1,538 {60.55}
7
418 {16.46}
8
1,274 {50.16}
9
268 {10.55}
10
1,221 {48.07}
11
363 {14.29}
12
1,455 {57.28}
13
451 {17.76}
14
1,220 {48.03}
15
1,608 {63.31}
16
777 {30.59}
17
1,009 {39.72}
