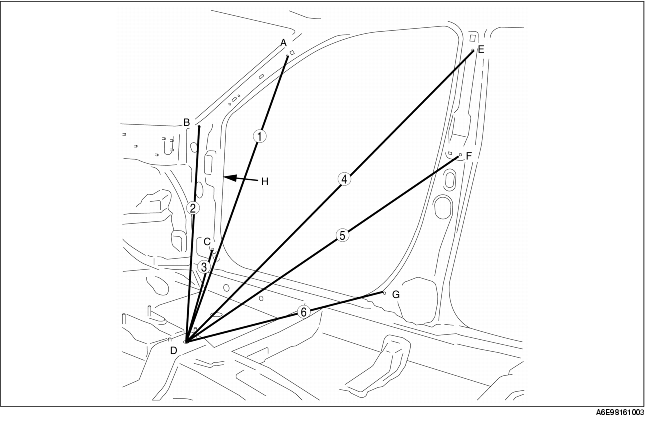

ROOM STRAIGHT-LINE DIMENSIONS (1)


Measured location	Dimensions mm {in}
1	2WD	1,024 {40.31}
1	4WD	1,012 {39.84}
2	2WD	1,098 {43.23}
2	4WD	1,102 {43.39}
3	2WD	920 {36.22}
3	4WD	934 {36.77}
4	2WD	1,175 {46.26}
4	4WD	1,151 {45.31}
5	2WD	1,010 {39.76}
5	4WD	988 {38.90}
6	2WD	767 {30.20}
6	4WD	760 {29.92}
H-H'	1,487 {58.54}
