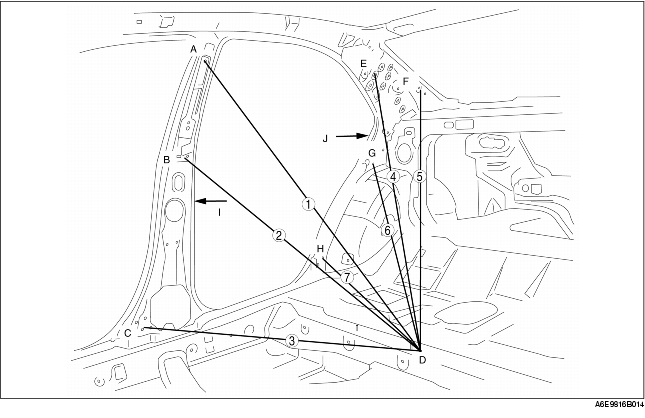

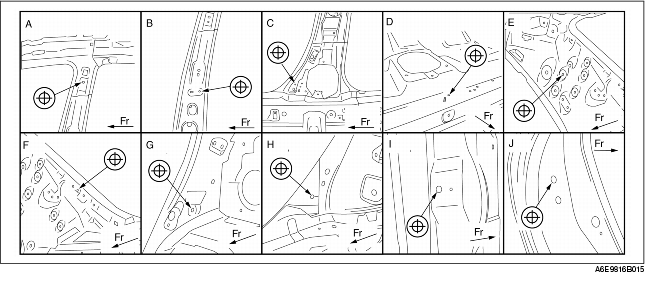

Measured location
|
Dimensions mm {in}
|
|
1
|
RH:1,141 {44.92}, LH:1,104 {43.46}
|
|
2
|
RH:996 {39.21}, LH:946 {37.24}
|
|
3
|
RH:952 {37.48}, LH:897 {35.31}
|
|
4
|
RH:1,193 {46.97}, LH:1,157 {45.55}
|
|
5
|
RH:1,285 {50.59}, LH:1,252 {49.29}
|
|
6
|
RH:1.079 {42.48}, LH:1,030 {40.55}
|
|
7
|
RH:833 {32.80}, LH:767 {30.20}
|
|
I-I'
|
1,584 {62.36}
|
|
J-J'
|
1,557 {61.30}
|
