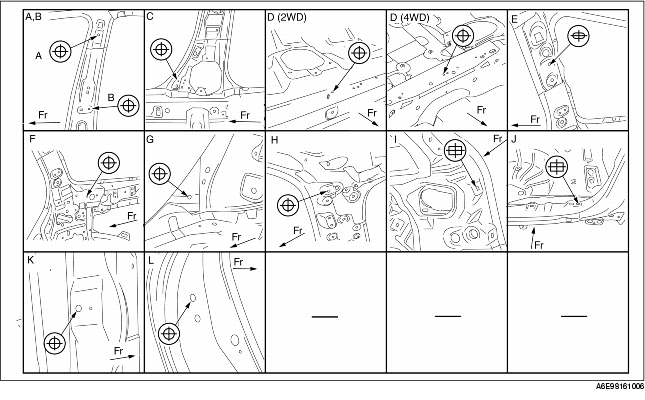

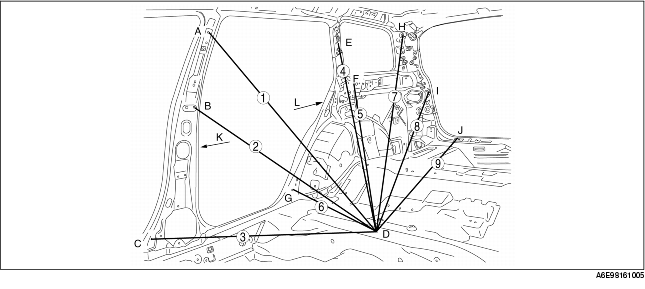

Measured location
|
Dimensions mm {in}
|
|
1
|
2WD
|
RH:1,141 {44.92}, LH:1,104 {43.46}
|
|
4WD
|
RH:1,053 {41.46}, LH:1,030 {40.55}
|
|
2
|
2WD
|
RH:996 {39.21}, LH:946 {37.24}
|
|
4WD
|
RH:924 {36.38}, LH:894 {35.20}
|
|
3
|
2WD
|
RH:952 {37.48}, LH:897 {35.31}
|
|
4WD
|
RH:929 {36.57}, LH:897 {35.31}
|
|
4
|
2WD
|
RH:1,215 {47.83}, LH:1,179 {46.42}
|
|
4WD
|
RH:1,147 {45.16}, LH:1,126 {44.33}
|
|
5
|
2WD
|
RH:1,230 {48.43}, LH:1,190 {46.85}
|
|
4WD
|
RH:1,185 {46.65}, LH:1,160 {45.67}
|
|
6
|
2WD
|
RH:833 {32.80}, LH:767 {30.20}
|
|
4WD
|
RH:819 {32.24}, LH:781 {30.75}
|
|
7
|
2WD
|
RH:1,531 {60.28}, LH:1,507 {59.33}
|
|
4WD
|
RH:1,481 {58.31}, LH:1,467 {57.76}
|
|
8
|
2WD
|
RH:1,708 {67.24}, LH:1,684 {66.30}
|
|
4WD
|
RH:1,689 {66.50}, LH:1,675 {65.94}
|
|
9
|
2WD
|
RH:1,680 {66.14}, LH:1,660 {65.35}
|
|
4WD
|
RH:1,683 {66.26}, LH:1,672 {65.83}
|
|
K-K'
|
1,505 {59.25}
|
|
L-L'
|
1,557 {61.30}
|
