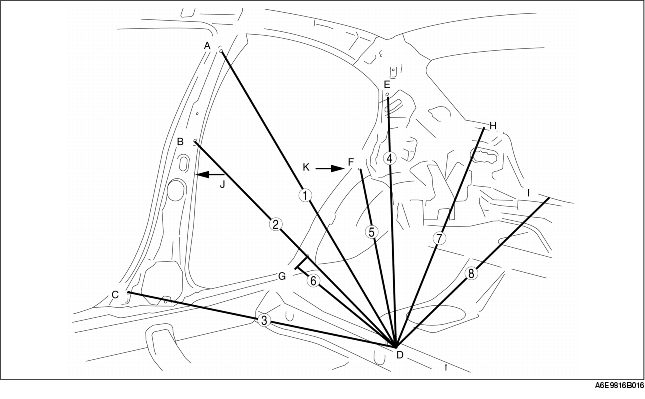

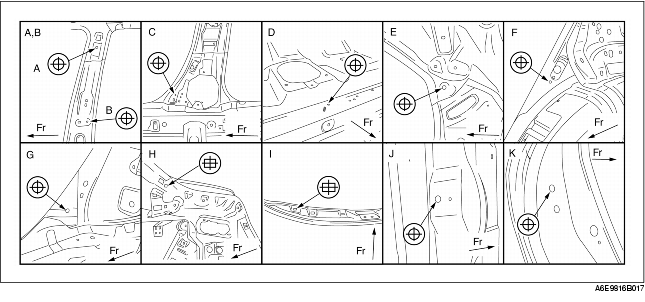

Measured location
|
Dimensions mm {in}
|
|
1
|
RH:1,141 {44.92}, LH:1,104 {43.46}
|
|
2
|
RH:996 {39.21}, LH:946 {37.24}
|
|
3
|
RH:952 {37.48}, LH:897 {35.31}
|
|
4
|
RH:1,204 {47.40}, LH:1,166 {45.91}
|
|
5
|
RH:1,027 {40.43}, LH:976 {38.43}
|
|
6
|
RH:833 {32.80}, LH:767 {30.20}
|
|
7
|
RH:1,402 {55.20}, LH:1,374 {54.09}
|
|
8
|
RH:1,671 {65.79}, LH:1,657 {65.24}
|
|
J-J'
|
1,584 {62.36}
|
|
K-K'
|
1,557 {61.30}
|
