CABIN SIDE FRAME STRAIGHT-LINE DIMENSIONS (WAGON)

id0980107436a1

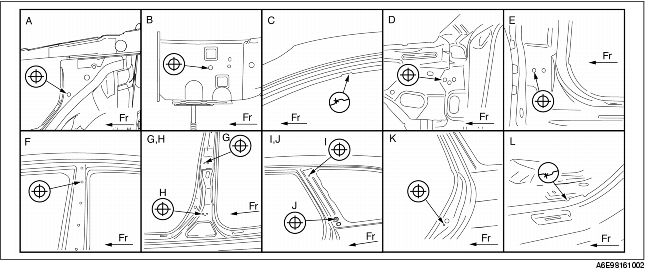

Measured location

Dimensions mm {in}

1
692 {27.24}
2
747 {29.41}
3
998 {39.29}
4
968 {38.11}
5
451 {17.76}
6
1,349 {53.11}
7
1,144 {45.04}
8
1,144 {45.04}
9
1,501 {59.09}
10
1,204 {47.40}
11
1,093 {43.03}
12
795 {31.03}
13
964 {37.95}
14
943 {37.13}
15
979 {38.54}
16
1,024 {40.31}
17
1,069 {42.09}
18
921 {36.26}
19
683 {26.89}
20
1,255 {49.41}
21
1,227 {48.31}
22
1,004 {39.53}
23
536 {21.10}
