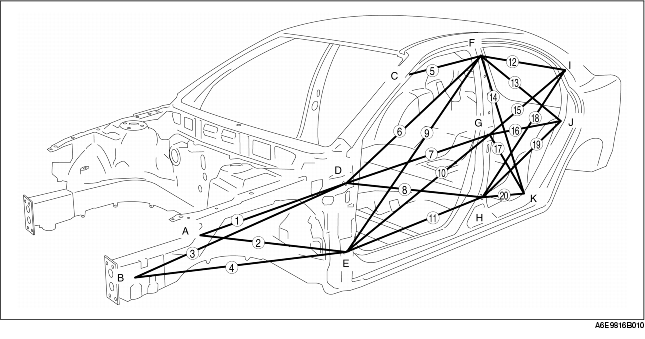

CABIN SIDE FRAME STRAIGHT-LINE DIMENSIONS (5HB)

id0980107436a2

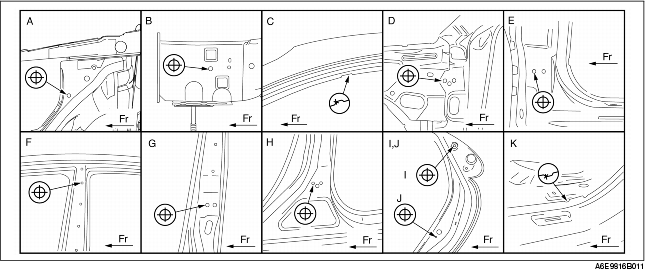

Measured location

Dimensions mm {in}

1
692 {27.24}
2
747 {29.41}
3
998 {39.29}
4
968 {38.11}
5
451 {17.76}
6
1,349 {53.11}
7
1,144 {45.04}
8
1,144 {45.04}
9
1,501 {59.09}
10
1,204 {47.40}
11
1,093 {43.03}
12
908 {35.75}
13
943 {37.13}
14
979 {38.54}
15
1,050 {41.34}
16
921 {36.26}
17
683 {26.89}
18
1,231 {48.46}
19
1,004 {39.53}
20
536 {21.10}
