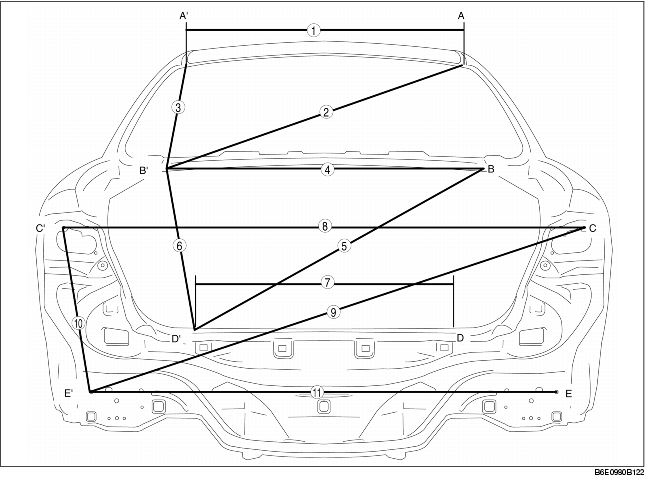

REAR BODY STRAIGHT-LINE DIMENSIONS (SEDAN)
id0980107482a0
|

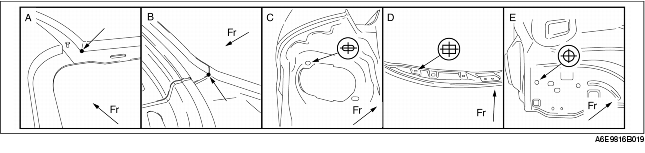

Measured location
|
Dimensions mm {in}
|
|
1
|
1,013 {39.88}
|
|
2
|
1,273 {50.12}
|
|
3
|
826 {32.52}
|
|
4
|
928 {36.54}
|
|
5
|
969 {38.15}
|
|
6
|
555 {21.85}
|
|
7
|
680 {26.77}
|
|
8
|
1,402 {55.20}
|
|
9
|
1,388 {54.65}
|
|
10
|
452 {17.80}
|
|
11
|
1,228 {48.35}
|
