REAR BODY STRAIGHT-LINE DIMENSIONS (WAGON)

id0980107482a1

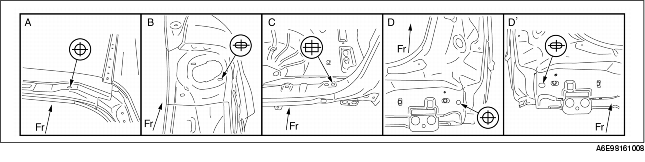

Measured location

Dimensions mm {in}

1
700 {27.56}
2
1,234 {48.58}
3
1,424 {56.06}
4
1,241 {48.86}
5
948 {37.32}
6
1,057 {41.61}
7
708 {27.87}
8
1,461 {57.52}
9
1,442 {56.77}
10
425 {16.73}
11
916 {36.06}
12
1,300 {51.18}
