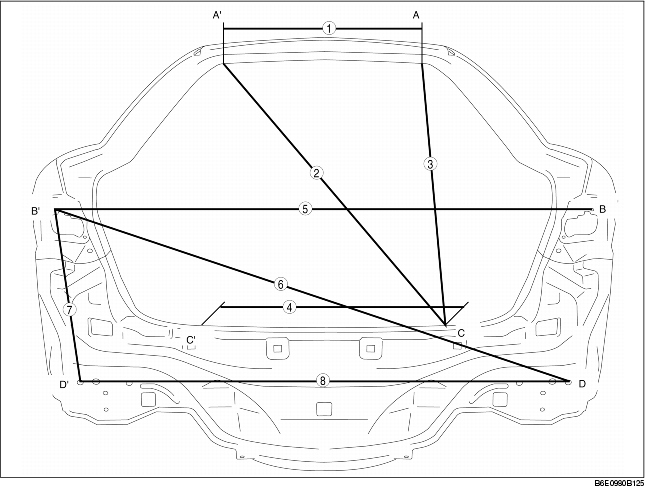

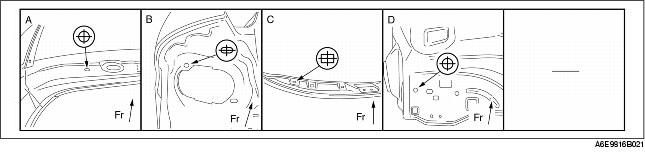

Measured location
|
Dimensions mm {in}
|
|---|---|
|
1
|
700 {27.56}
|
|
2
|
1,436 {56.54}
|
|
3
|
1,260 {49.61}
|
|
4
|
680 {26.77}
|
|
5
|
1,402 {55.20}
|
|
6
|
1,388 {54.65}
|
|
7
|
452 {17.80}
|
|
8
|
1,228 {48.35}
|
