MEASUREMENT/ADJUSTMENT VALUE INPUT SHEET

id051700665300

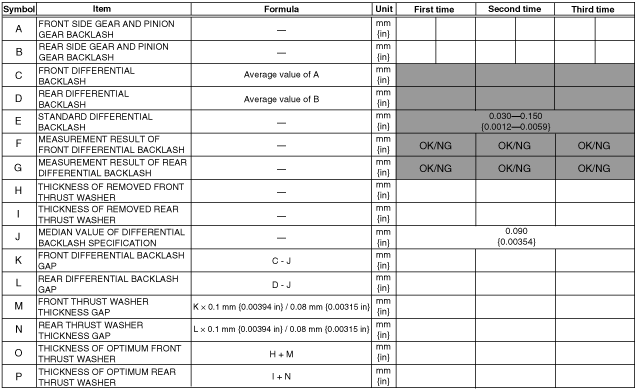

Differential Backlash Measurement/Adjustment

bgw2za00000005

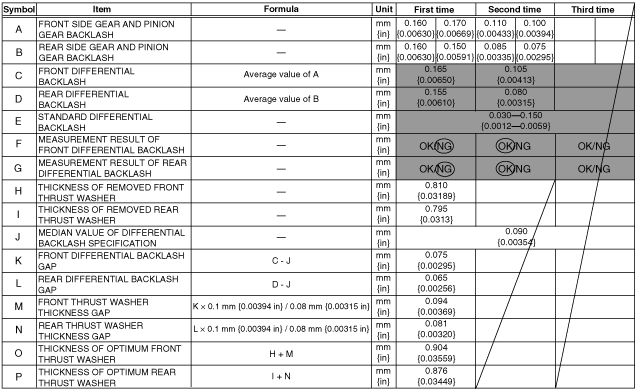

Description example

bgw2za00000023

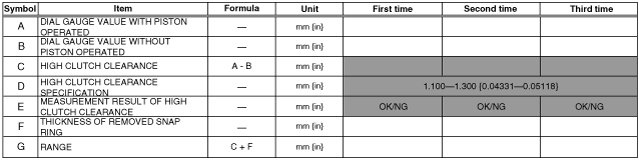

High Clutch Clearance Measurement/Adjustment

bgw2za00000007

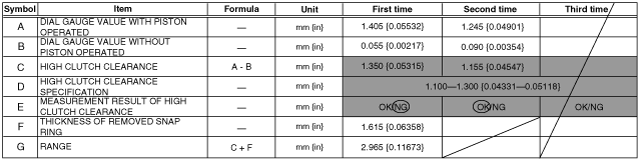

Description example

bgw2za00000008

Low Clutch Clearance Measurement/Adjustment

bgw2za00000009

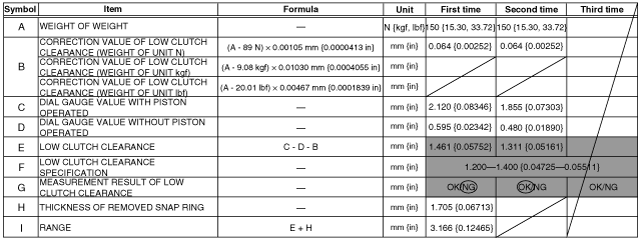

Description example

bgw2za00000010

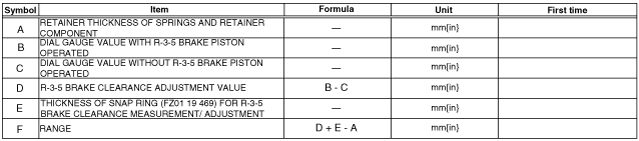

R-3-5 Brake Clearance Measurement/Adjustment

bgw2za00000011

Description example

bgw2za00000012

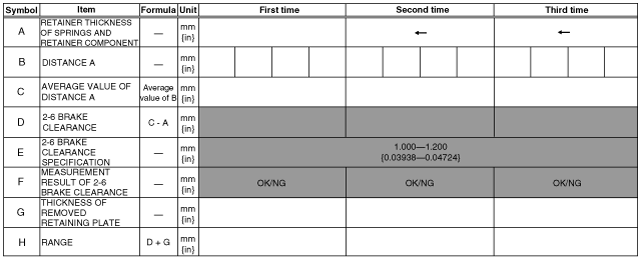

2-6 Brake Clearance Measurement/Adjustment

bgw2za00000013

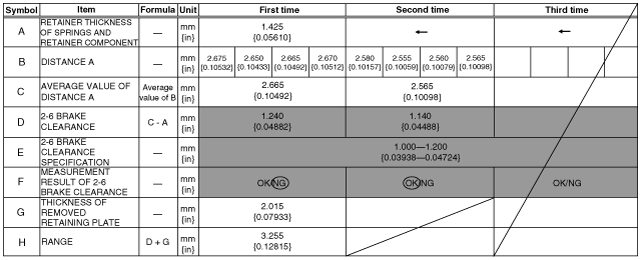

Description example

bgw2za00000014

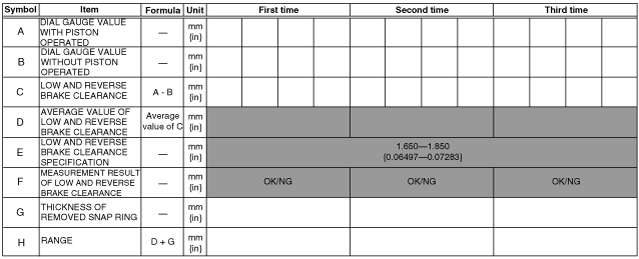

Low and Reverse Brake Clearance Measurement/Adjustment

bgw2za00000015

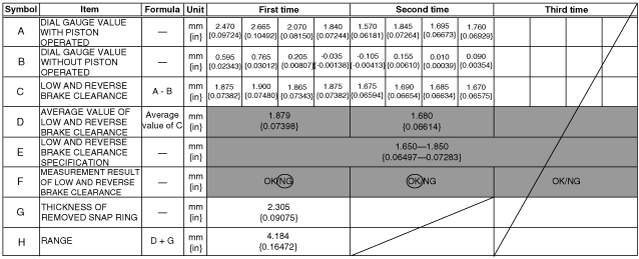

Description example

bgw2za00000016

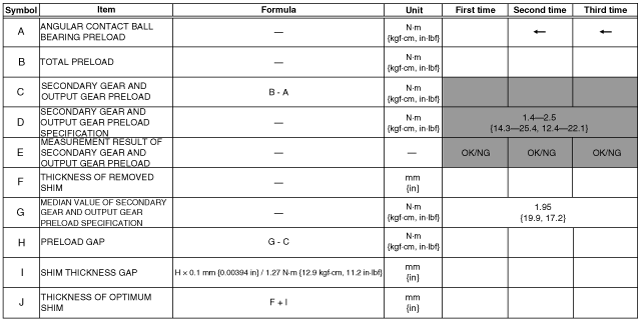

Secondary Gear and Output Gear Preload Measurement/Adjustment

bgw2za00000025

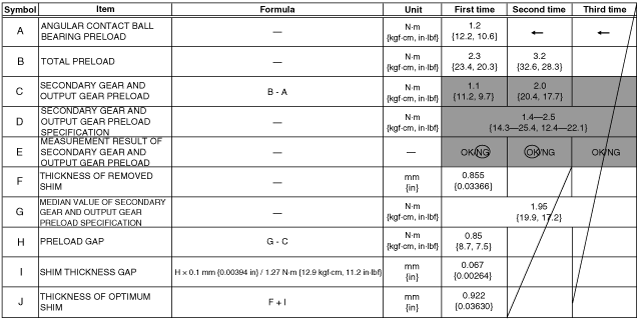

Description example

bgw2za00000026

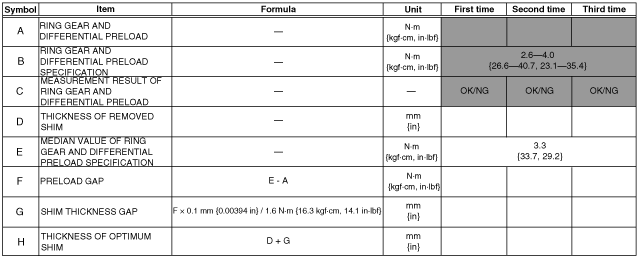

Ring Gear and Differential Preload Measurement/Adjustment

bgw2za00000027

Description example

bgw2za00000028

Total End Play Measurement/Adjustment

bgw2za00000021

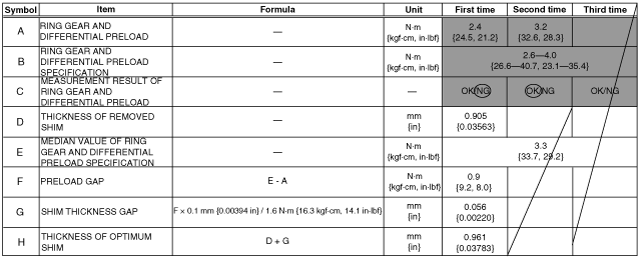

Description example

bgw2za00000022
