WASTEGATE SOLENOID VALVE [SKYACTIV-D 2.2]
id0113z7256000
Purpose, Function
• Introduces intake manifold vacuum to the wastegate valve actuator.
• The wastegate valve opens according to the control signal from the PCM.
Construction

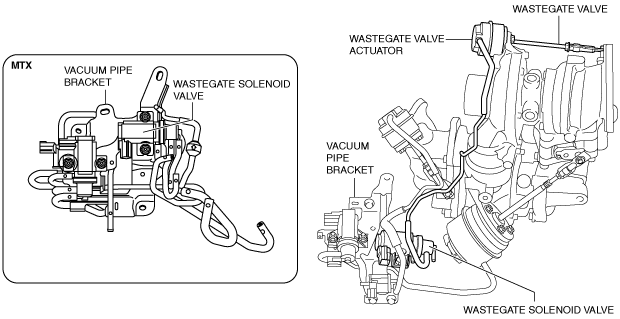

• Installed to the vacuum pipe bracket on the side of the turbocharger.
• The wastegate solenoid valve consists of a coil, spring, and plunger.
Operation
• According to the control signal from the PCM, the coil is energized and the plunger is operated to open/close the wastegate solenoid valve.
• By opening the wastegate solenoid valve, the intake manifold vacuum is introduced to the wastegate valve actuator.
Fail-safe
|
DTC
|
Fail-safe
|
|
P004C:00
P004D:00
|
• PCM restricts engine-transaxle integration control. (ATX)
• Inhibits engine-stop by operating the i-stop function.
|
