FUEL TANK [SKYACTIV-D 2.2]

id0114z7104100


Purpose, Function

•  Made of steel for weight reduction.

Construction

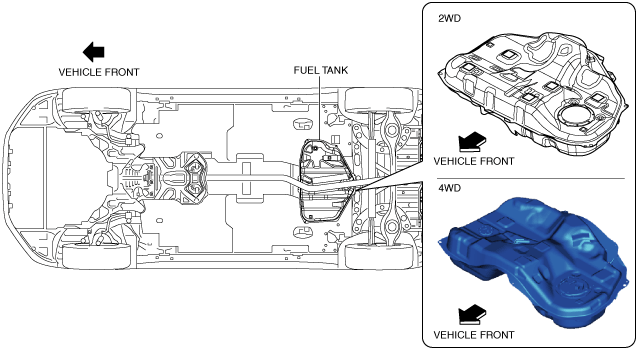

•  The fuel tank is installed below the rear seat.
am6zzn00003227
•  The fuel tank is made of steel.
•  The following parts are integrated in the fuel tank.

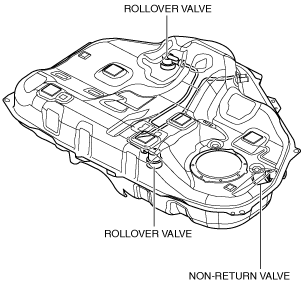

2WD

am6zzn00002479

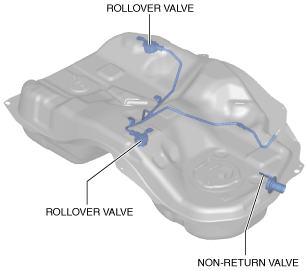

4WD

am6zzn00003228
―  Non-return valve
(See NON-RETURN VALVE [SKYACTIV-D 2.2].)
―  Rollover valve
(See ROLLOVER VALVE [SKYACTIV-D 2.2].)
